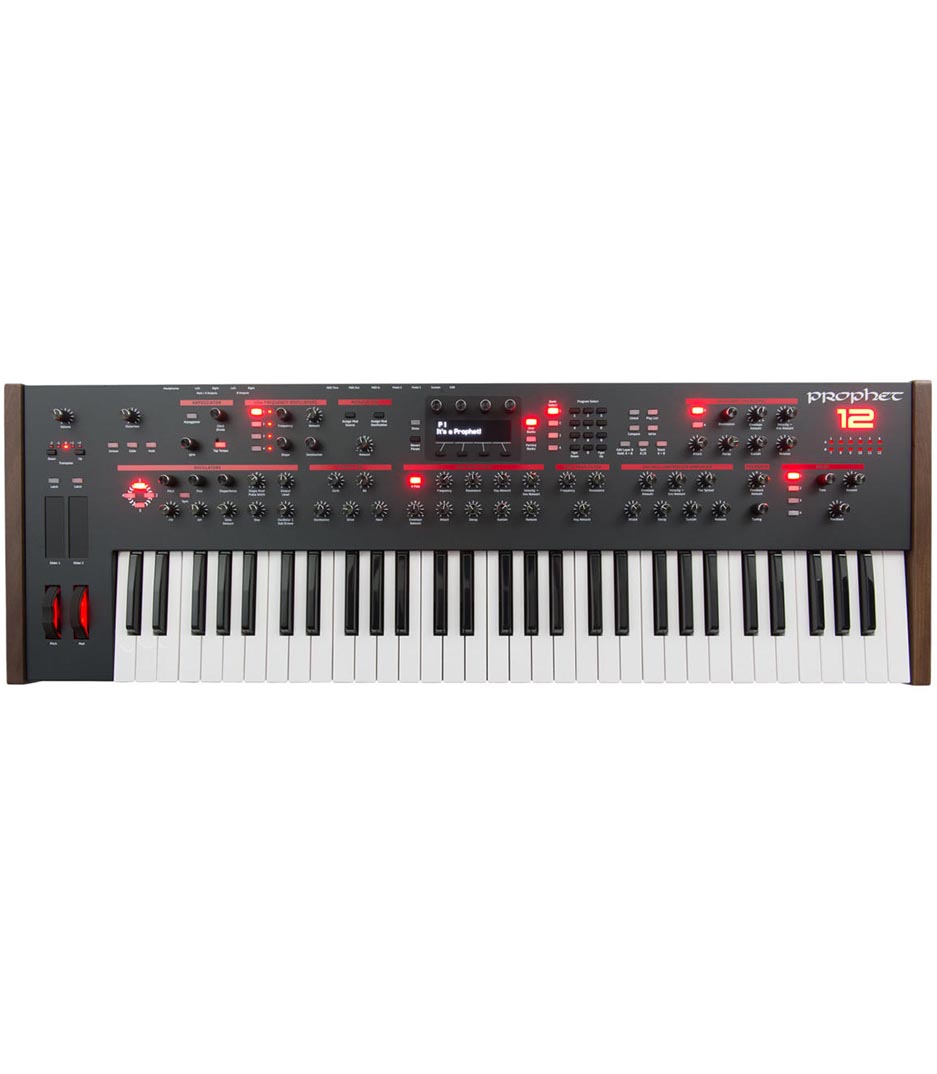

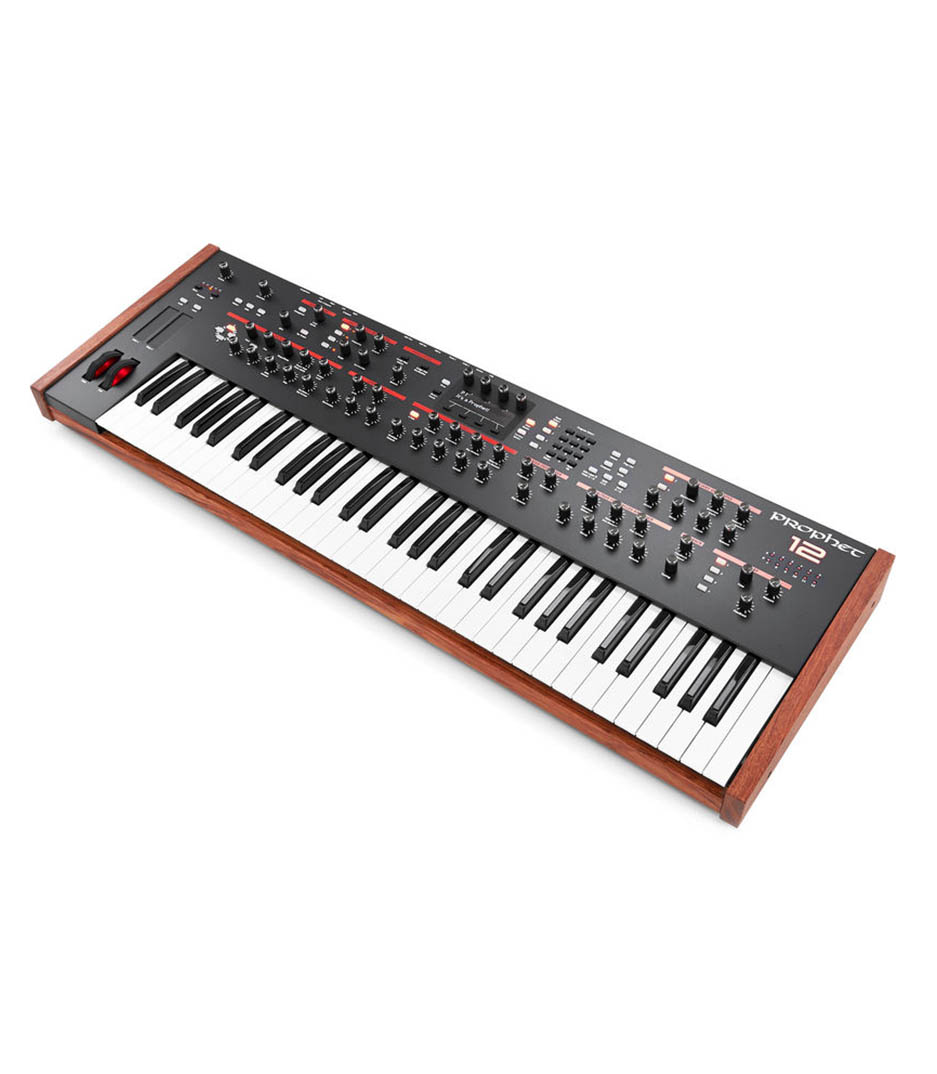

Dave smith instruments prophet 12 61 keys 12 voice hybrid digital analog synthesizer

The prophet 12 is the next step for dave smith’s revered line of prophet synthesizers. Each of the prophet’s twelve voices is composed of a brand new hybrid digital/analog architecture that sounds different than any other dsi synth, yet retains the true prophet vibe. With a humongous twelve voice polyphony, streamlined design, and sophisticated architecture, the prophet 12 is ready to handle any sound you can dream up.

the prophet 12’s brand new hybrid voice has a digital front end followed by an all analog signal path output. Each voice has four high resolution digital oscillators (plus a sub oscillator), a digital character effects section, a resonant curtis low-pass filter, a high-pass filter, a tune-able feedback circuit, a four-tap delay line with feedback per line, four loopable five-stage envelope generators, four syncable lfos with slew and phase offset, a sophisticated arpeggiator, and a sixteen slot modulation matrix with 26 mod sources and 97 modulation destinations. The prophet 12 is packed with a plethora of sonic potential and power!

the digital oscillators can be frequency and amplitude modulated by each other with incredible accuracy. They can be freely assigned in whatever operator and modulator configurations you would choose. You can even assign each of the oscillators to modulate lfos, envelopes, and filters

Specification

Model

Prophet 12

Keyboard

61 semi-weighted keys with velocity and aftertouch

Voices

12

Oscillators

5x dsp-based oscillators with per voice; 4 with hard sync

Waveform type

Sawtooth

,

square

,

triangle

,

sine (per oscillator) 12x selectable complex shapes (per oscillator)

Filters

1x curtis 2- or 4-pole resonant analog low-pass filter per voice (self oscillating in 4-pole mode) 1x 2-pole resonant analog high-pass filter per voice

Arpeggiator

Programmable arpeggiator with up

,

down

,

up+down

,

random

,

assign modes with re-latching

Controls

50+ knobs 50+ buttons 1x backlit pitch wheel 1x backlit mod wheel 2x assignable position and pressure-sensitive latchable sliders

Memory

396x user programs 396x factory programs

I/o

1x 5-pin din midi input 1x 5-pin din midi output 1x 5-pin din midi thru 1x usb midi port 1x 1/4" (6.3 mm) sustain footswitch input 2x 1/4" (6.3 mm) expression pedal input 2x 1/4" (6.3 mm) main outputs 2x 1/4" (6.3 mm) layer

Accessories
