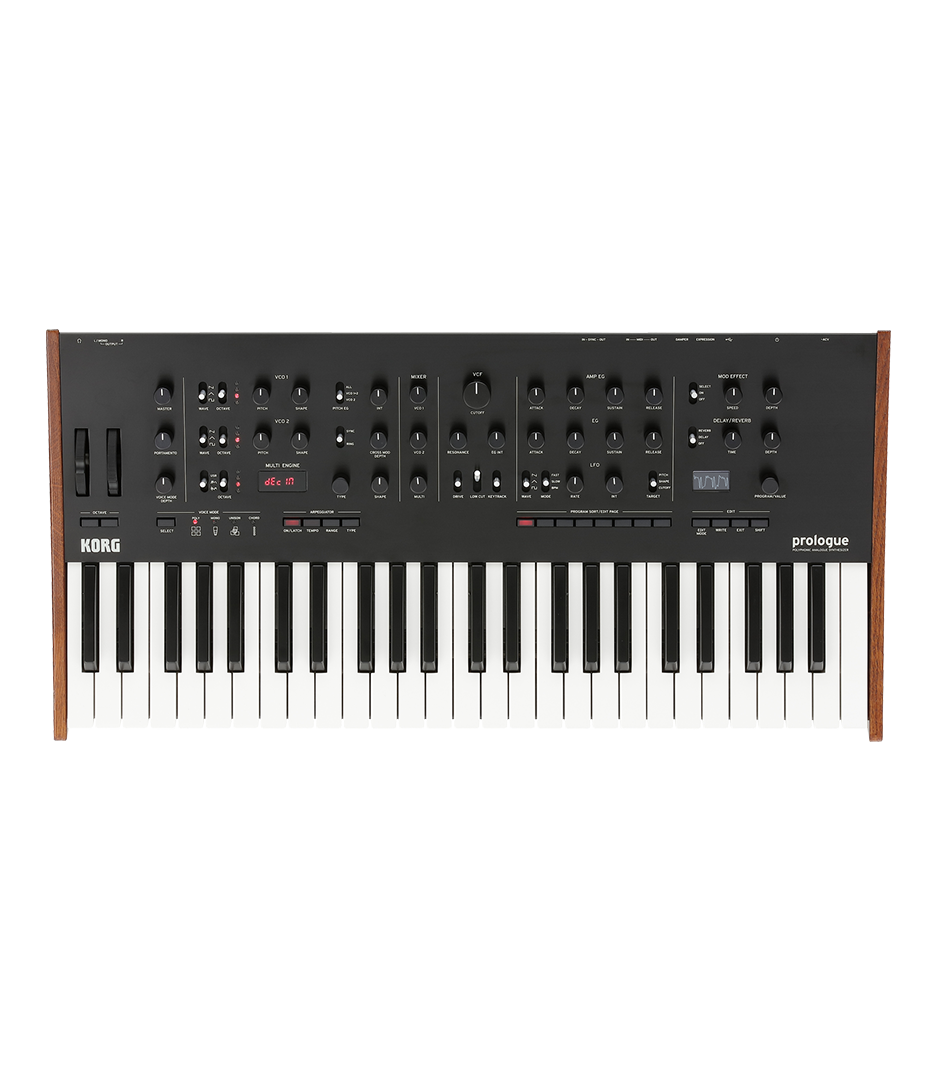

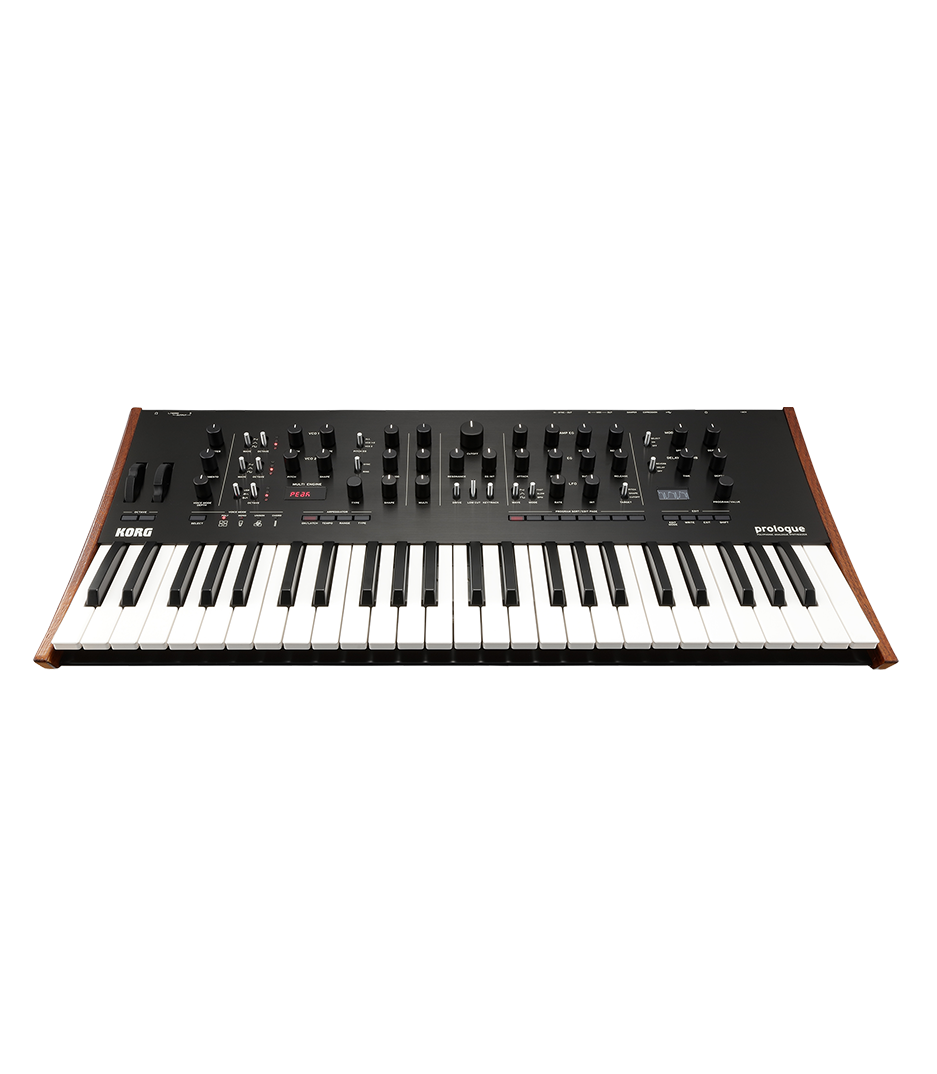

Korg prologue 8 49 keys polyphonic analogue synthesizer
49 keys prologue is a fully-programmable, full-featured, professional synthesizer. Preceded by the four-voice polyphonic minilogue and the monophonic monologue, it’s the long awaited debut of the flagship: the prologue
Specification
| Model |
Prologue 8 |
|---|---|
| Keyboard |
49 keys (natural touch keyboard with velocity) |
| Maximum polyphony |
8 voices |
| Programs |
500 voices (more than 250 preload ,250 user programs). |
| Controls |
Wheels – modulation wheel that can modify different parameters for each program ,pitch wheel knobs – portamento knob ,voice spread knob (only on prologue-16) |
| Input/output connectors |
Headphone jack (stereo phone jack) sync in jack (3.5 mm [1/8"] mini jack ,maximum input level 20 v) sync out jack (3.5 mm [1/8"] mini jack ,output level 5 v) midi in jack midi out jack usb b jack expression jack damper jack (half damper is not supported) ac power sync in jack (3.5 mm [1/8"] mini jack ,maximum input level 20 v) sync out jack (3.5 mm [1/8"] mini jack ,output level 5 v) midi in jack midi out jack |
