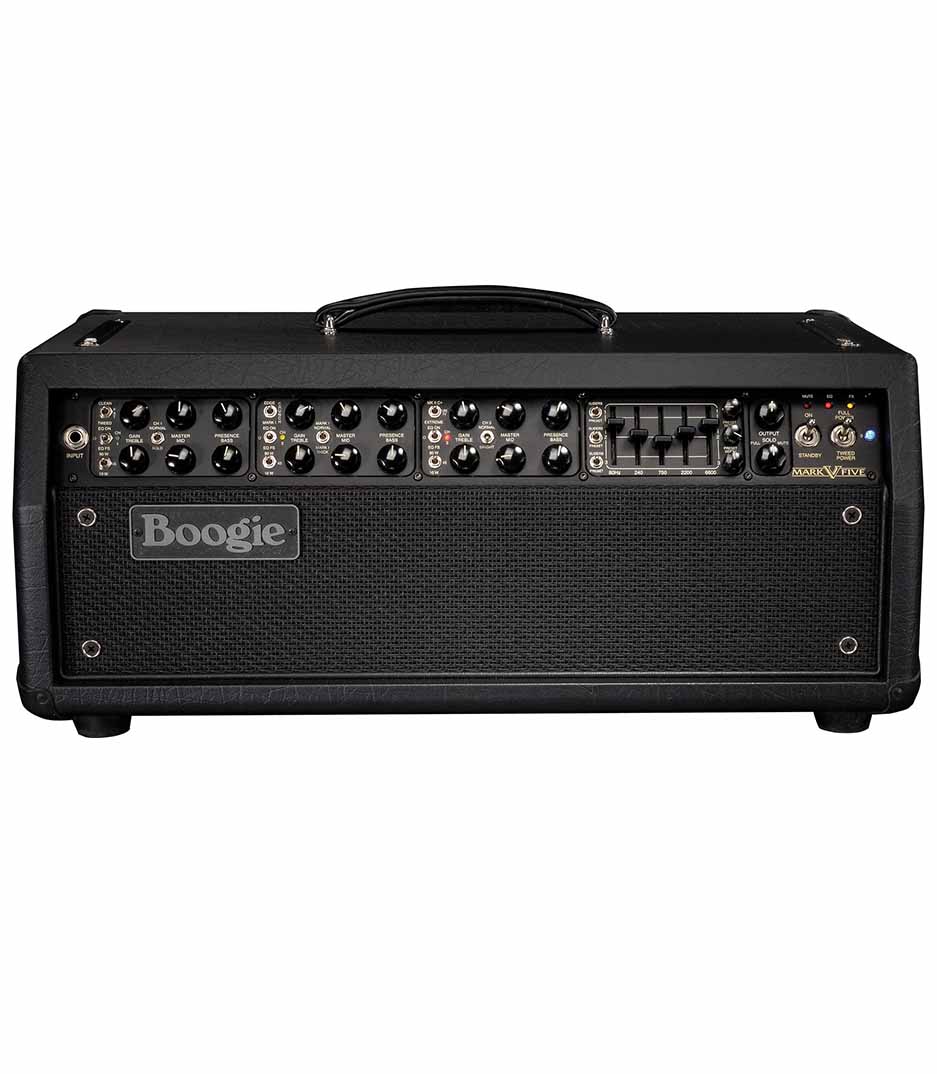

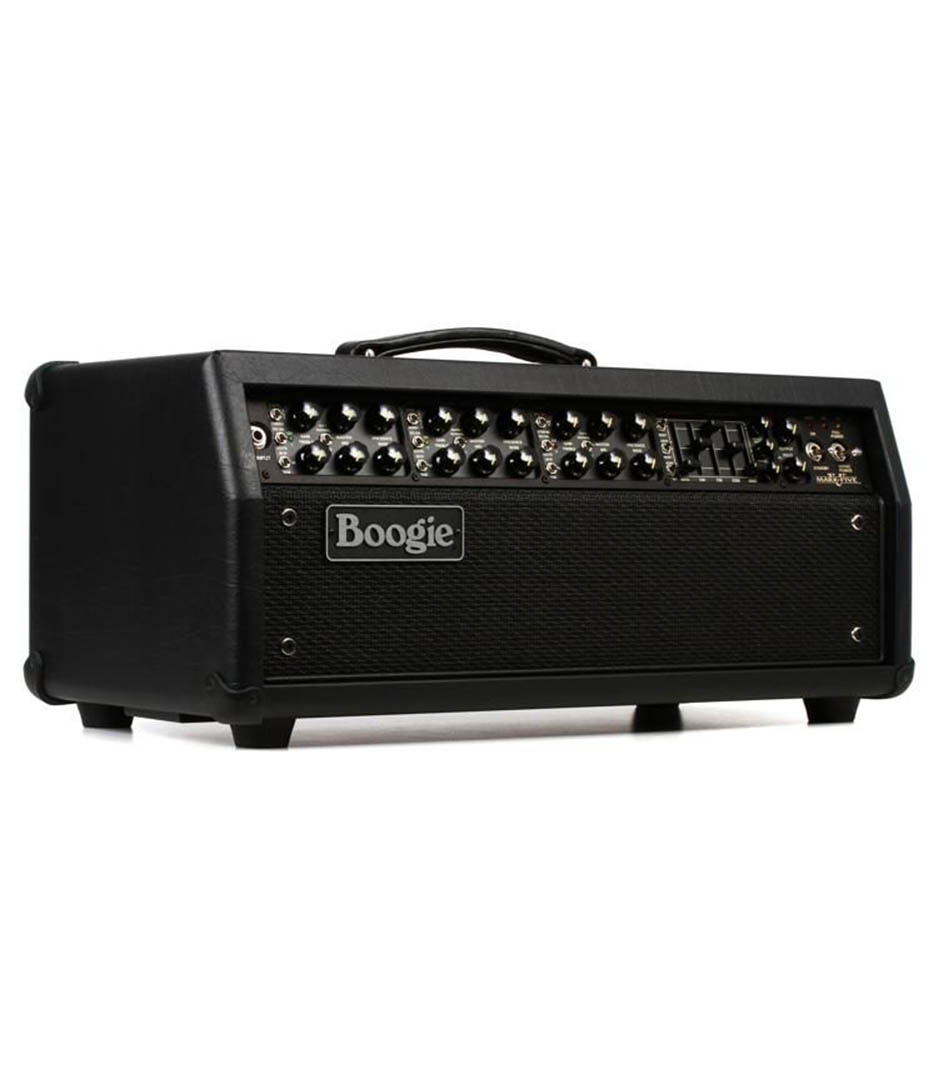

Mesa boogie mark v amp head
The mark v is really a collection of amplifiers. There are far too many circuits and sounds to think of it as merely an amp. It is also a living history of our company. From the groundbreaking mark i that introduced the world to high-gain with it
Specification
| Model |
Mark v |
|---|---|
| Power |
90 watts ,power tube type – 4x mesa 6l6 |
| Effects |
Reverb / effects & bypass options – footswitchable ,all-tube ,long spring reverb with independent channel controls (back panel) ,effects loop & bypass options – fully buffered series fx loop w/send level control – footswitchable ,channel assignabl |
| Rectifier type |
Selectable dual rectification (ch 1 & 2 – 45 watt modes) with patented recto tracking䋢 (patent 7 ,193 ,458). Recto tracking䋢 auto-matches the correct rectifier compliment for the number of power tubes in use. 10 watt modes = tube rectificatio |
| Tubes |
Rectifier tubes – 1x mesa 5u4 ,variac power switch – full/tweed power switch ,preamp tubes – 7x mesa 12ax7power amp tubes – 4x mesa 6l6 (or el-34) ,bias switch for alternate power tubes types – bias select for 6l6 or el-34 ,maintenance free fixed b |
| Channels |
Number of footswitchable channels (or modes) – three channels ,number of style modes – nine ,number of style modes per channel – three ,types of style modes per channel – ch. 1 = clean ,fat or tweed ,ch. 2 = edge ,crunch or mark i䋢 ,ch. 3 = mark |
| Outputs |
Global output level control – yes ,global solo level control & bypassable options – yes (over each channel when activated) ,true-bypass switch removes fx loop ,output & solo level controls ,tuner output – yes (back panel) with footswitchable mute |
