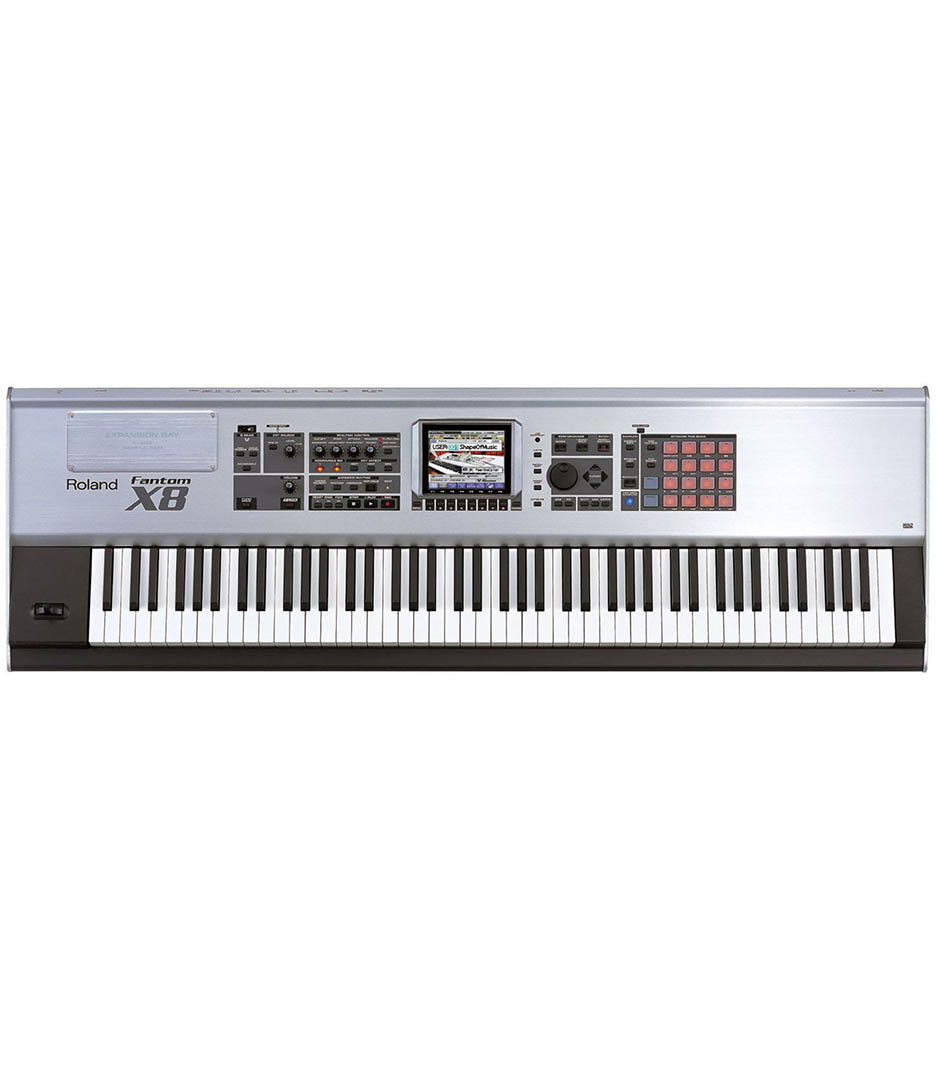

Roland fantom x8 88 keys workstation
The fantom-x series is the flagship of the roland workstation family, offering musicians nearly 1gb of wave memory when fully expanded, and 128-voice performance. At the top of the vast soundset is roland’s finest 88-key split stereo-sampled piano, with each note individually sampled at multiple velocities. In addition, the fantom-x provides room for four srx expansion boards, so users can customize their soundsets to their specific needs and stylistic preferences.
the fantom-x series is the first line of workstation keyboards with a color lcd screen. Combined with an inviting icon-driven user interface, the fantom-x has been globally heralded as the most powerful-yet-friendly workstation on the market
Specification
| Model |
Fantom x8 |
|---|---|
| Keyboard |
88 keys (progressive hammer action mechanism and channel aftertouch) |
| Sound generator section |
Maximum polyphony – 128 voices standard wave memory – 128 m bytes (16-bit linear equivalent) standard waveforms – 1 ,480 preset memory ,patches – 1 ,152+ 256 (gm2) user memory 256 patches |
| Sampling section |
Data format – 16-bit linear (. Wav/. Aiff) frequency – 44.1 khz (fixed) maximum time – standard (32 mb) number of samples – user memory ,2 ,000 |
| Effects |
Multi-effects – 3 systems ,78 types |
| Sequencer section |
Tracks – phrase tracks (16 midi channels per track) – 16 resolution – 480 tpqn tempo – 5 – 300 note capacity – approx. 400 ,000 notes song length – 9 ,998 measures recording method – realtime recording ,step recording |
| Others |
Arpeggiator – preset – 128 rhythm pattern – preset – 256 (32 groups) chord memory – preset – 64 display – graphic 320 x 240 dots backlit lcd (color) dynamic pads – 16 pads ,velocity and aftertouch sensitive |
| Controllers |
Pitch bend/modulation lever |
| Expansion slots |
Expansion of waveforms and patchs for the internal sound generator ,external storage device – pc card – 1 slot (supports smartmedia and compactflash using a pc card adapter) |
| Connectors |
Headphones jack |
