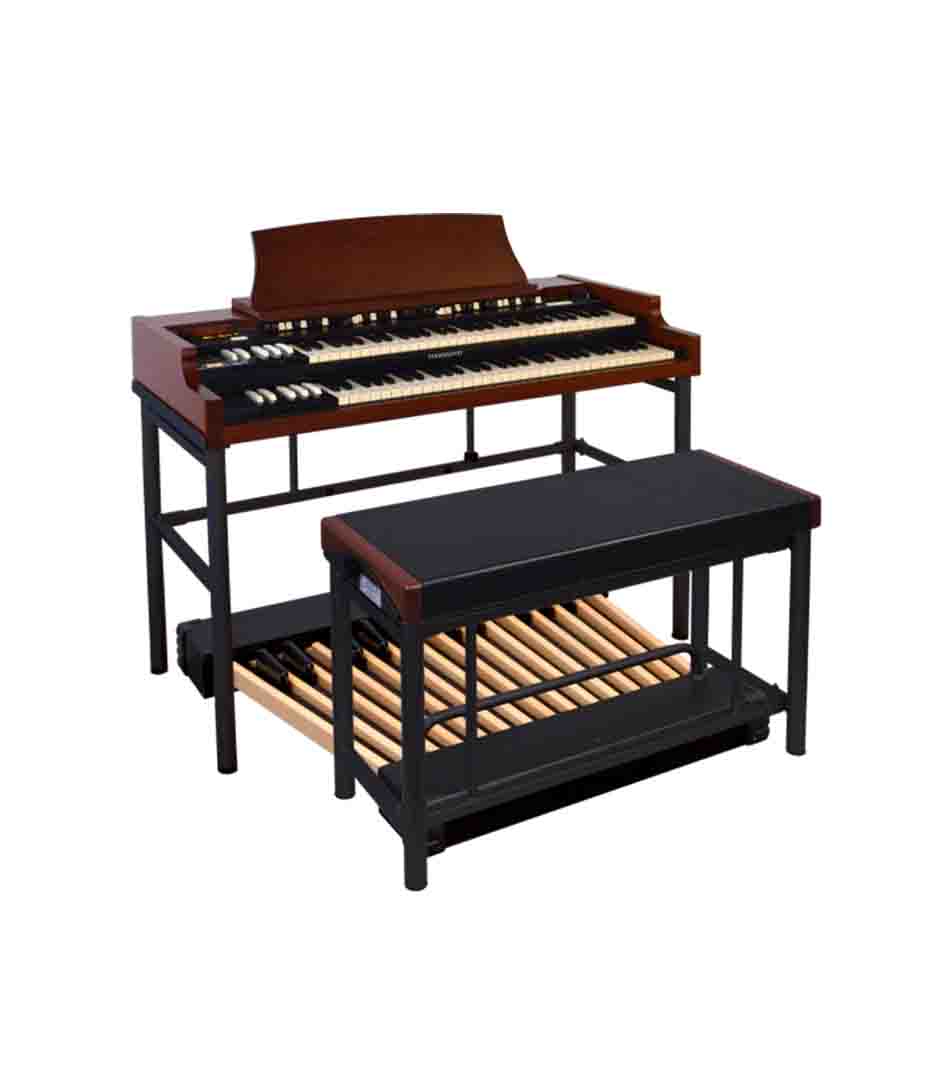

Hammond xk5 full system organ black
full system organ the xk5 is a genuine hammond organ with virtual tone wheels which emulate the traditional sound of legendary hammond organs such as the b3, c3, a100 and l100 models, amongst many others
Specification
| Model |
Xk-5 system |
|---|---|
| Sound generator |
Mtw i(modelled tone wheel i) 61 polyphony (for manual) 3 polyphony (for pedal) |
| Keyboards |
73 keys (61 + 12 preset keys) water fall keyboard virtual multi contact system |
| Harmonic drawbars |
Upper 2 x 9 pitches lower 2 x 9 pitches pedal 2 pitches |
| Voicing |
Manuals 4 choices (a-100 ,b-3 ,c-3 ,mellow) pedal 4 choices (normal ,muted ,synth1 ,synth2) virtual multi contact |
| Percussion |
Adjustable touch response percussion touch ,velocity ,decay (fast ,slow) ,level (normal ,soft) |
| Effects |
Vibrato and chorus tube pre-amp (2 models 12ax7 & 12au7) overdrive 8 multi effects programs equalizer internal advanced digital leslie simulator 11 reverb programs master equalizer |
| Midi |
5 templates 3 external zones (upper) 2 external zones (lower) 1 external zone (pedal) |
| Connections |
Midi in (pedal) ,in (lower/other) ,out usb to host h-bus to keyboard/pedal (0.3a max) line out l/mono ,r ,headphones (rear ,bottom) leslie 11 pin leslie switch ,foot controller 1 ,2 ,exp. Pedal |
| Dimensions |
119(w) 40(d) 12(h) cm 15.7 kg |
