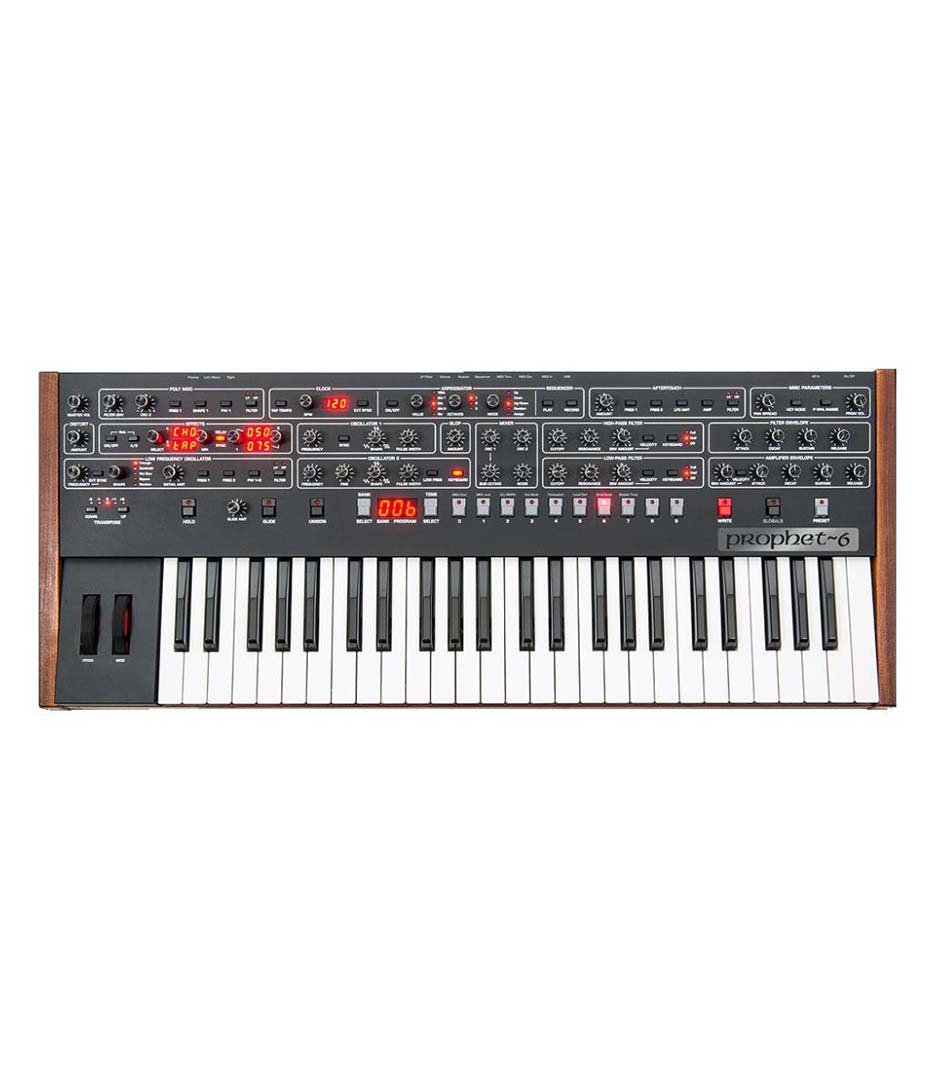

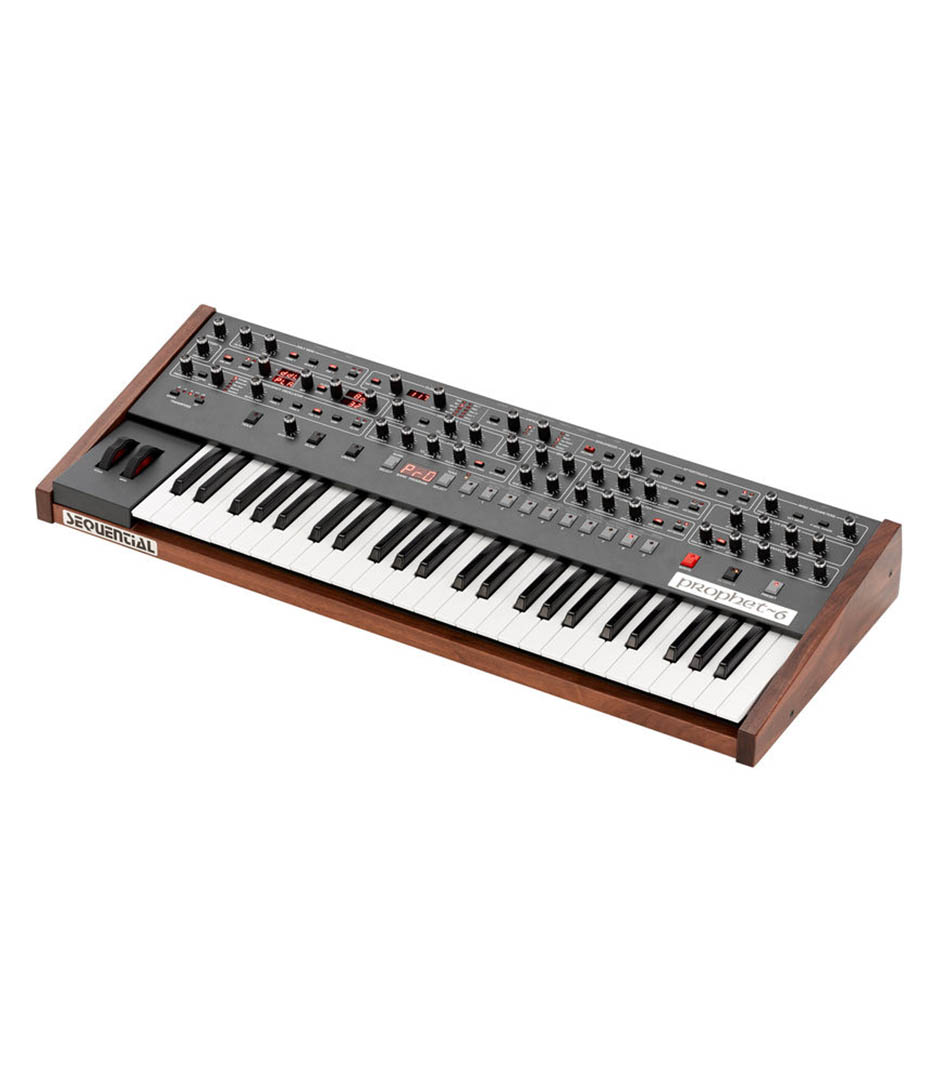

Sequential (dsi) prophet 6 49 keys 6 voice polyphonic analog synthesizer
6 voice polyphonic analog synthesizer vintage with a modern twist the prophet-6 is dave smith’s tribute to the poly synth that started it all—the sequential prophet-5. But it’s not simply a reissue of a classic. Rather, as dave puts it, “it’s the result of our effort to build the most awesome-sounding, modern analog poly synth possible.” the prophet-6 takes the best qualities of the original prophet-5—true voltage-controlled oscillators, filters, and amplifiers—and adds enhancements such as studio-quality effects, a polyphonic step sequencer, an arpeggiator, and more. The result is pure, unadulterated analog tone with the stability and reliability of a state-of-the-art modern synth
Specification
| Model |
Prophet 6 |
|---|---|
| Oscillators |
2 discrete vcos continuously variable wave shape per osc pulse width per osc hard sync; osc 1 syncs to osc 2 triangle sub-octave generator (osc 1) per voice low frequency mode (osc 2) keyboard tracking on/off (osc 2) |
| Mixer |
Oscillator 1 amount oscillator 1 sub-octave amount oscillator 2 amount white noise amount |
| Poly mod |
Sources; filter envelope (bi-polar) and oscillator 2 (bi-polar) destinations; oscillator 1 frequency ,oscillator 1 shape ,oscillator 1 pulse width ,low-pass filter cutoff ,high-pass filter cutoff |
| Arpeggiator |
Selectable note value; 16th note ,8th note triplet ,8th note ,dotted 8th note ,quarter note 1 ,2 ,or 3 octave range up ,down ,up/down ,random ,and assign modes |
| Sequencer |
Polyphonic step sequencer with up to 64 steps and rests |
| Effects |
Stereo analog distortion dual ,24-bit ,48 khz digital effects true bypass maintains fully analog signal path when digital effects are off |
| Performance controls |
Full-sized ,semi-weighted ,4-octave keyboard backlit pitch and mod wheels spring-loaded pitch wheel transpose controls for an 8-octave range hold switch latches held notes on polyphonic glide unison (monophonic) mod |
| Patch memory |
500 user and 500 factory programs in 10 banks of 100 programs each direct program access ,including prophet 5-style single-button access to the current set of 10 programs |
| In/out |

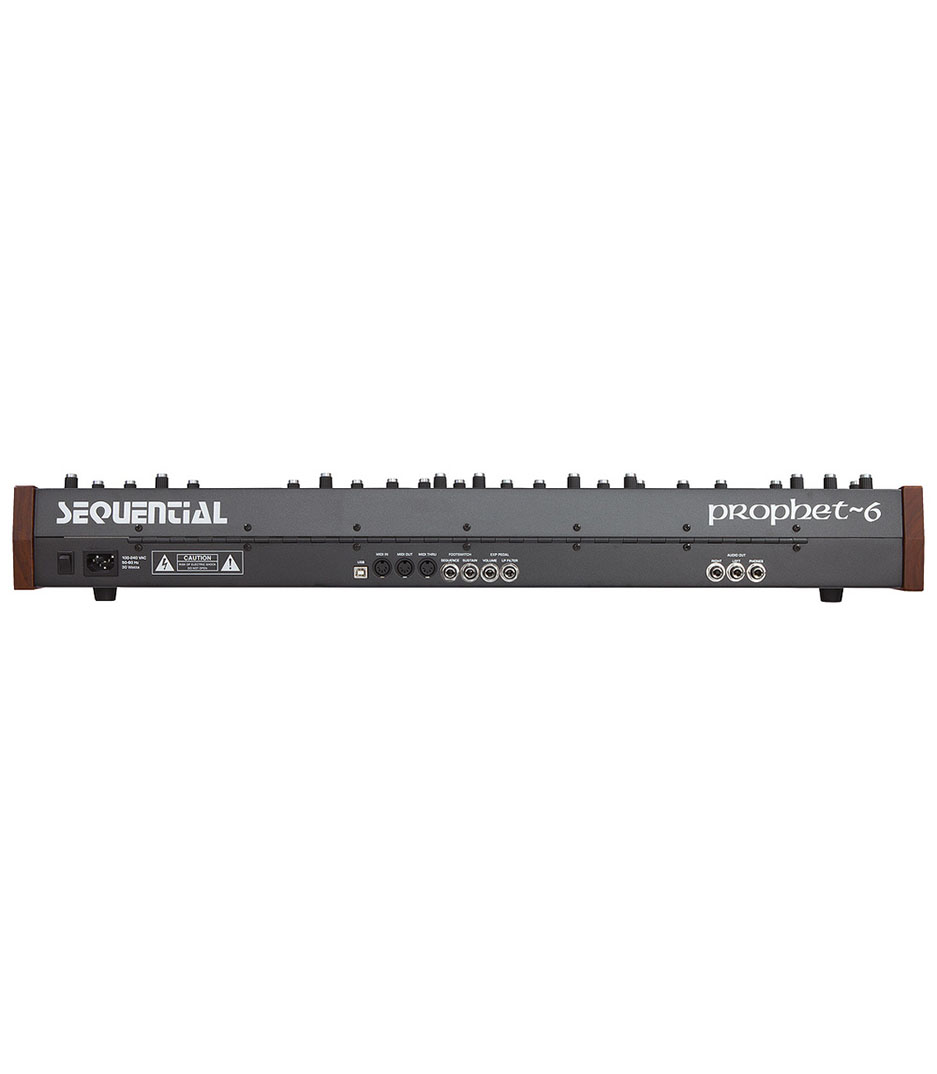

L/mono and r audio outputs (2 x 1/4”) headphone(stereo ,1/4”) midi in/out usb for bidirectional midi communication low-pass filter cutoff expression pedal volume expression pedal sustain footswitch sequencer footswitch |
