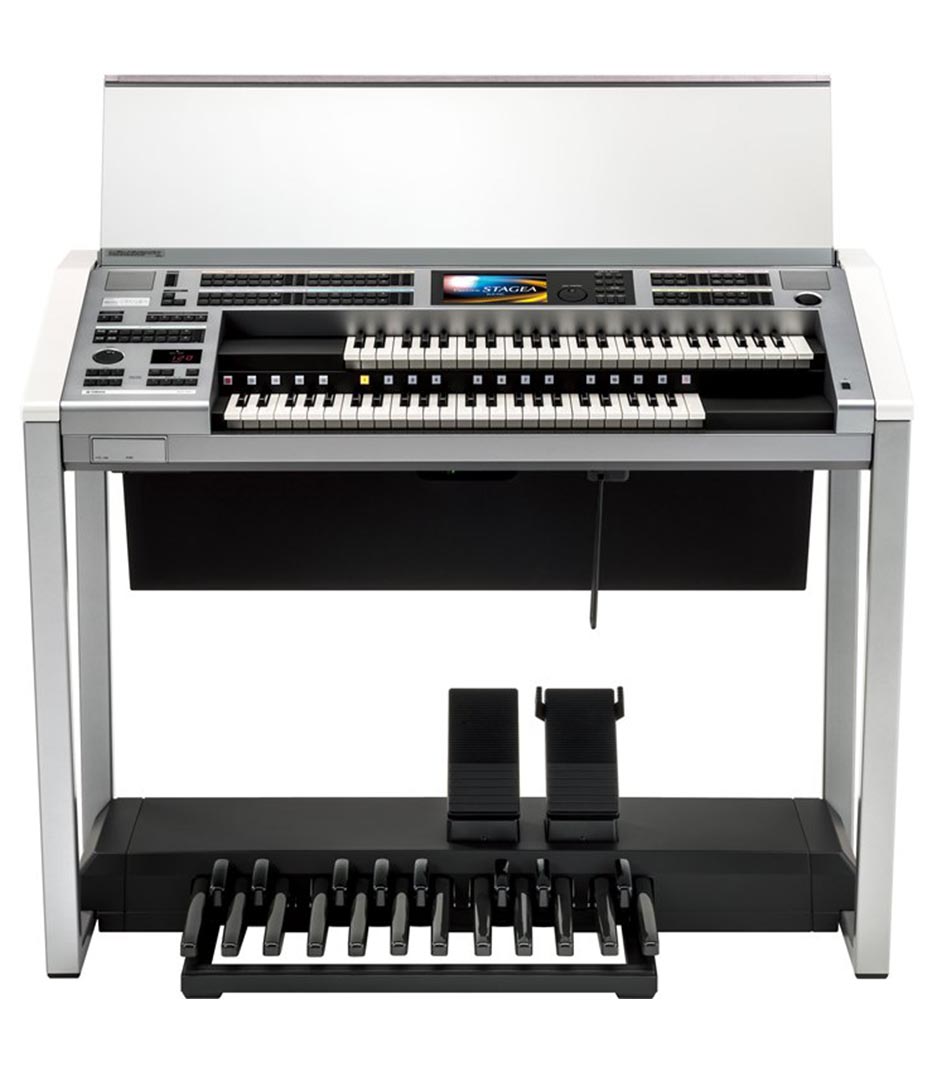

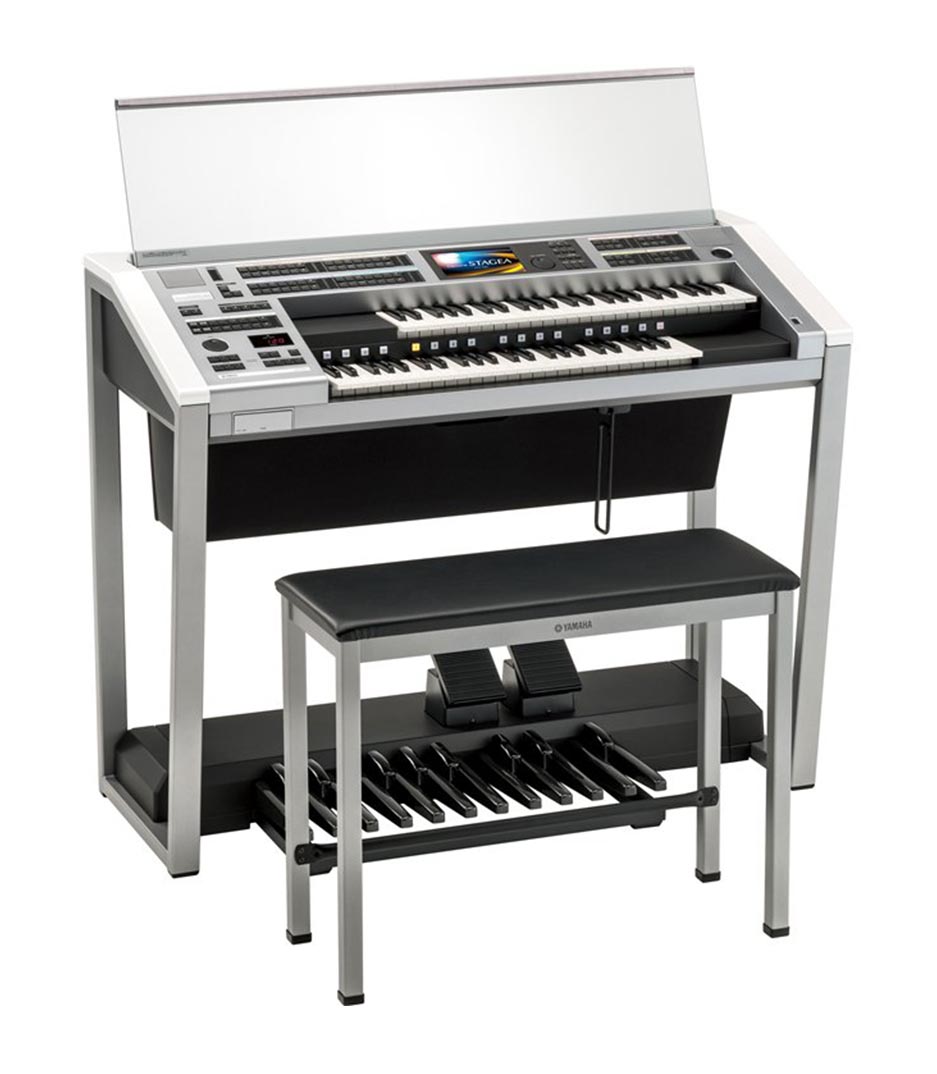

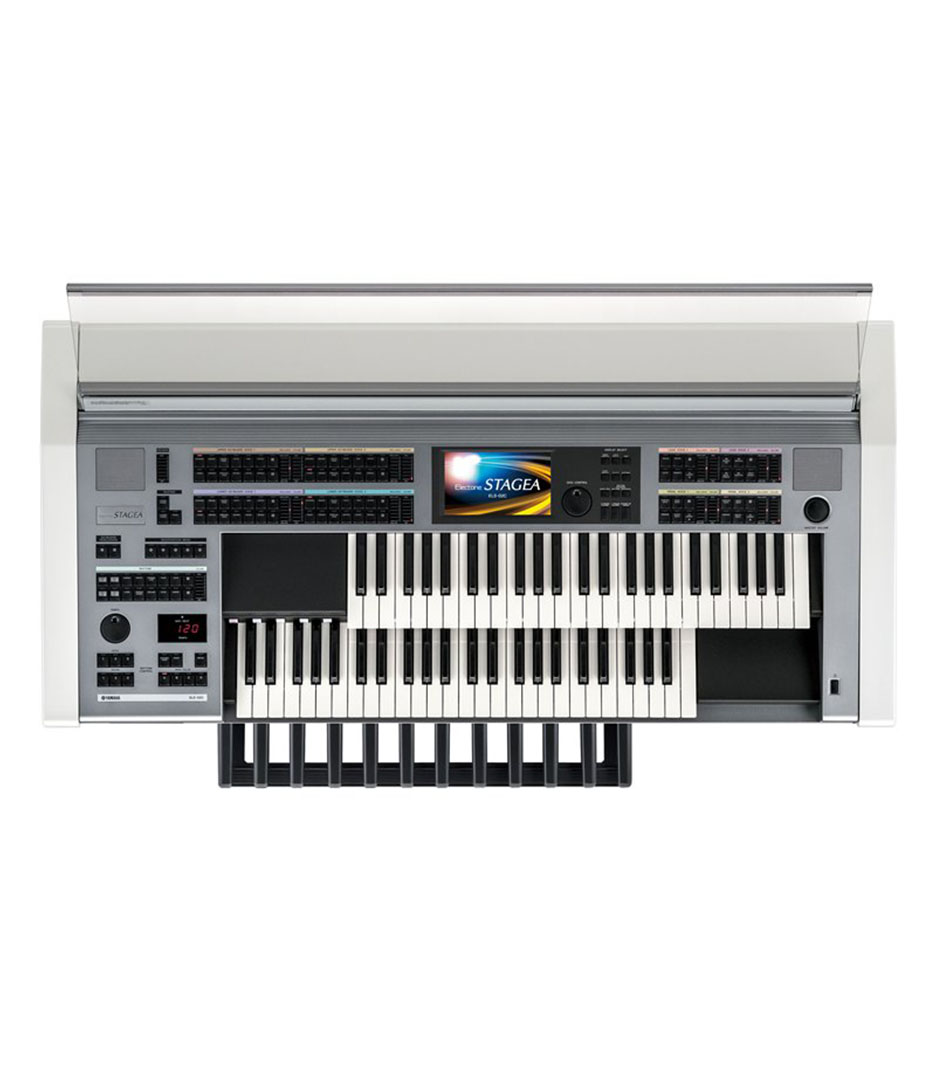

Yamaha els02c electone organ
Electone organ in addition to the functions of the standard-model els-02, this electone is the only instrument in the world equipped with custom upper and lower fsv keyboards that can accommodate horizontal touch as well as initial touch and after touch, which more faithfully captures the expression of the fingertips. With after touch on the pedalboard, a va tone generator and organ flute voices, and a second expression pedal, players can test the limits of their expression
Specification
| Model |
Els-02c |
|---|---|
| Number of keys |
Upper keyboard 49 keys; lower keyboard 49 keys pedal keyboard 20 keys |
| Pedal type |
Expression pedal ,2nd expression pedal |
| Foot switch function |
Rhythm ,stop ,break ,main a – d ,intro 1 – 3 ,ending 1 – 3 glide; upper 1 – 2 ,lower 1 – 2 ,lead 1 – 2 ,glide time rotary speaker |
| Knee lever |
Sustain (upper/lower) ,m. O. C. ,lead slide ,solo (lead 2) |
| Display |
Tft color wide vga lcd ,800 x 480 dots 7 inch |
| Voice section presets |
Upper and lower strings ,brass ,woodwind ,tutti ,pad ,synth ,piano ,organ ,percussion ,guitar ,choir ,world ,user 1 – 2 lead violin ,synth ,flute ,trumpet ,va-acoustic ,and more |
| Effects |
Reverb ,chorus ,brilliance ,delay ,distortion ,distortion ,plusamp ,simulator ,dynamic early/karaoke ,eq/enhancer ,flanger ,miscellaneous ,phaser ,pitch change ,rotary speaker ,tremolo / auto pan ,wah |
| Rhythm preset |
Control- start/stop ,synchro start ,tempo display ,bar/beat lamp select button- march ,waltz ,swing & jazz ,pops ,r&b ,latin ,world music ,ballad ,rock ,dance ,user 1 – 2. Number of rhythm- 634 (including the metronome) |
| Connectivity |
Headphones (2) mic./line in (jack ,switch ,and volume control) midi in/out aux in- l/l+r (standard phone) aux out- l/l+r (standard phone) ,l/r (level fixed rca) usb to device (3) |
